Jewelery Casting Machine
Jewelry Casting Machine

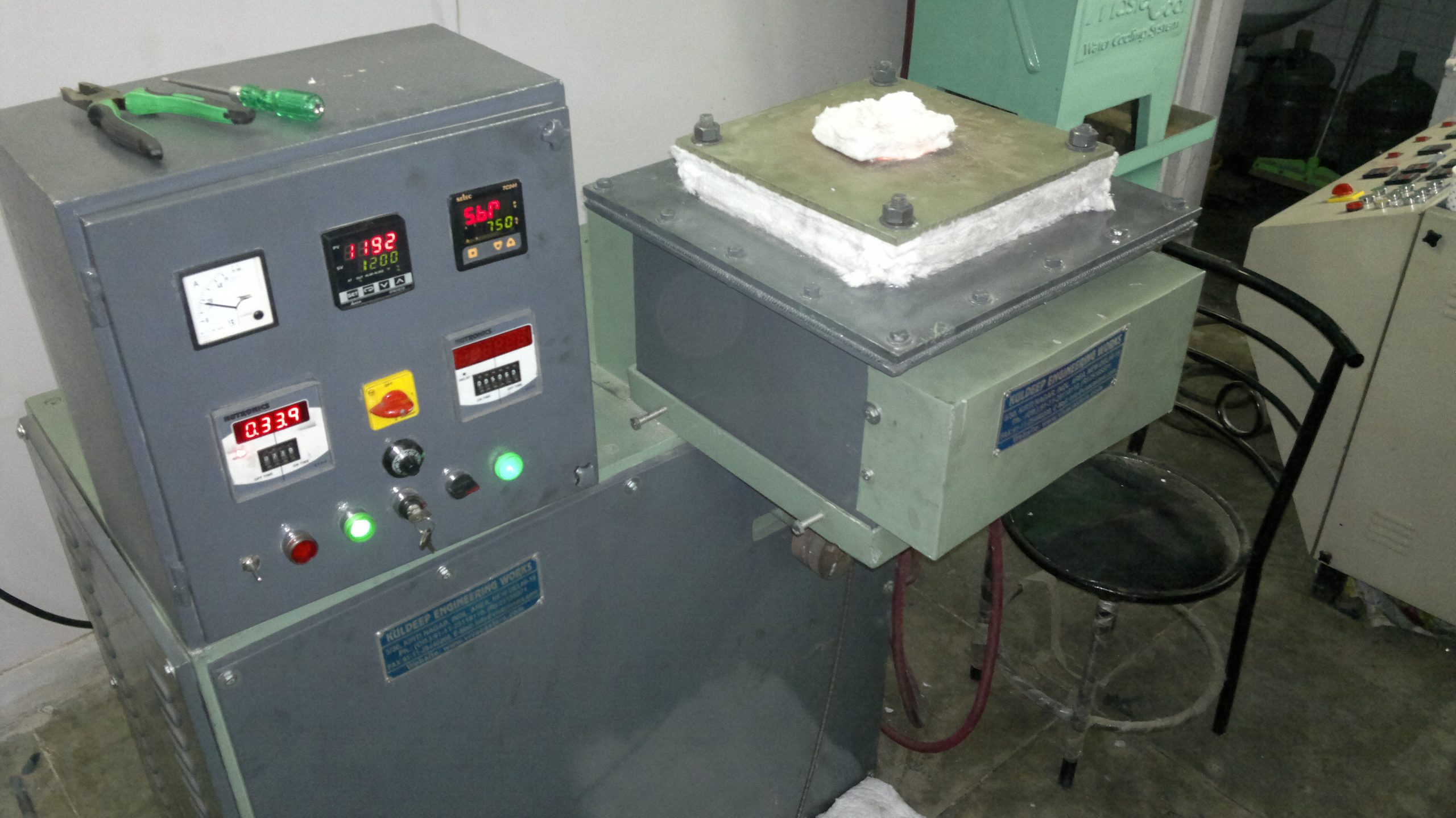

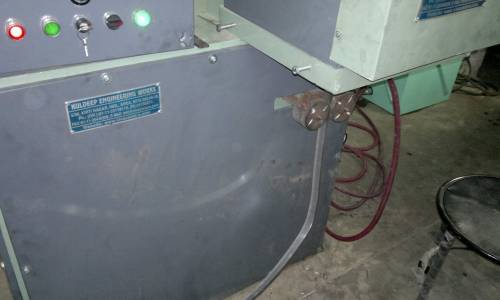

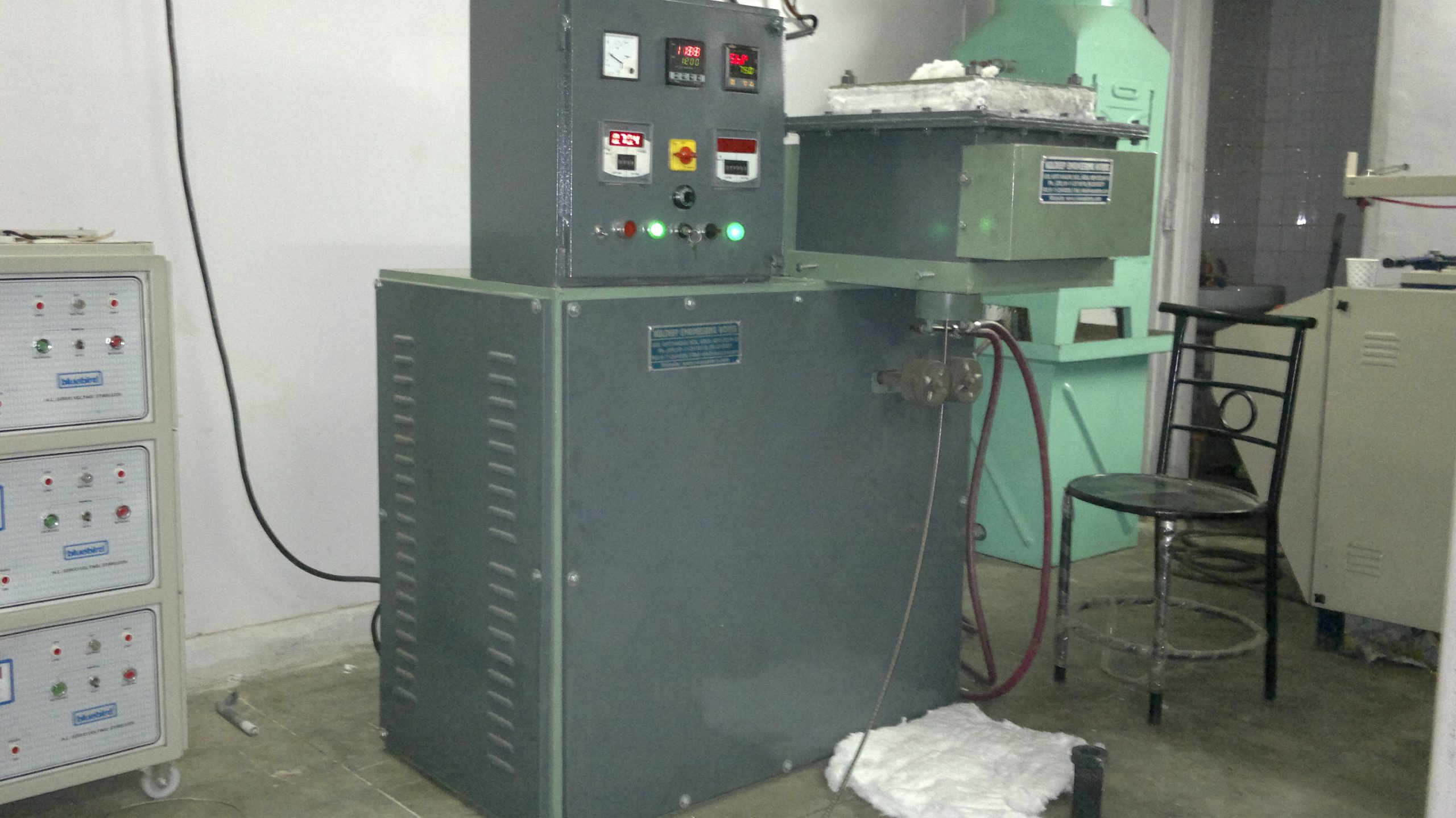

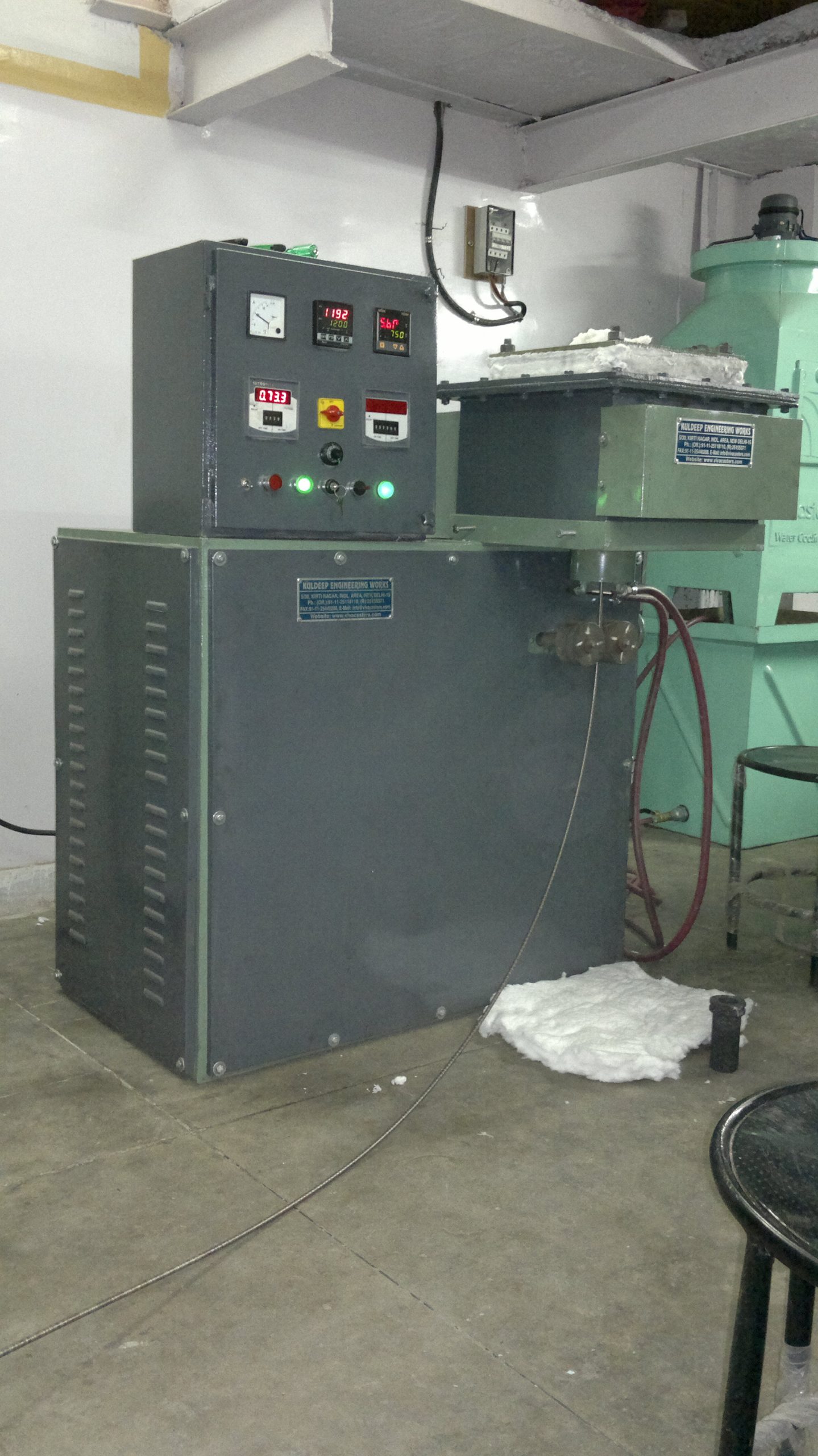

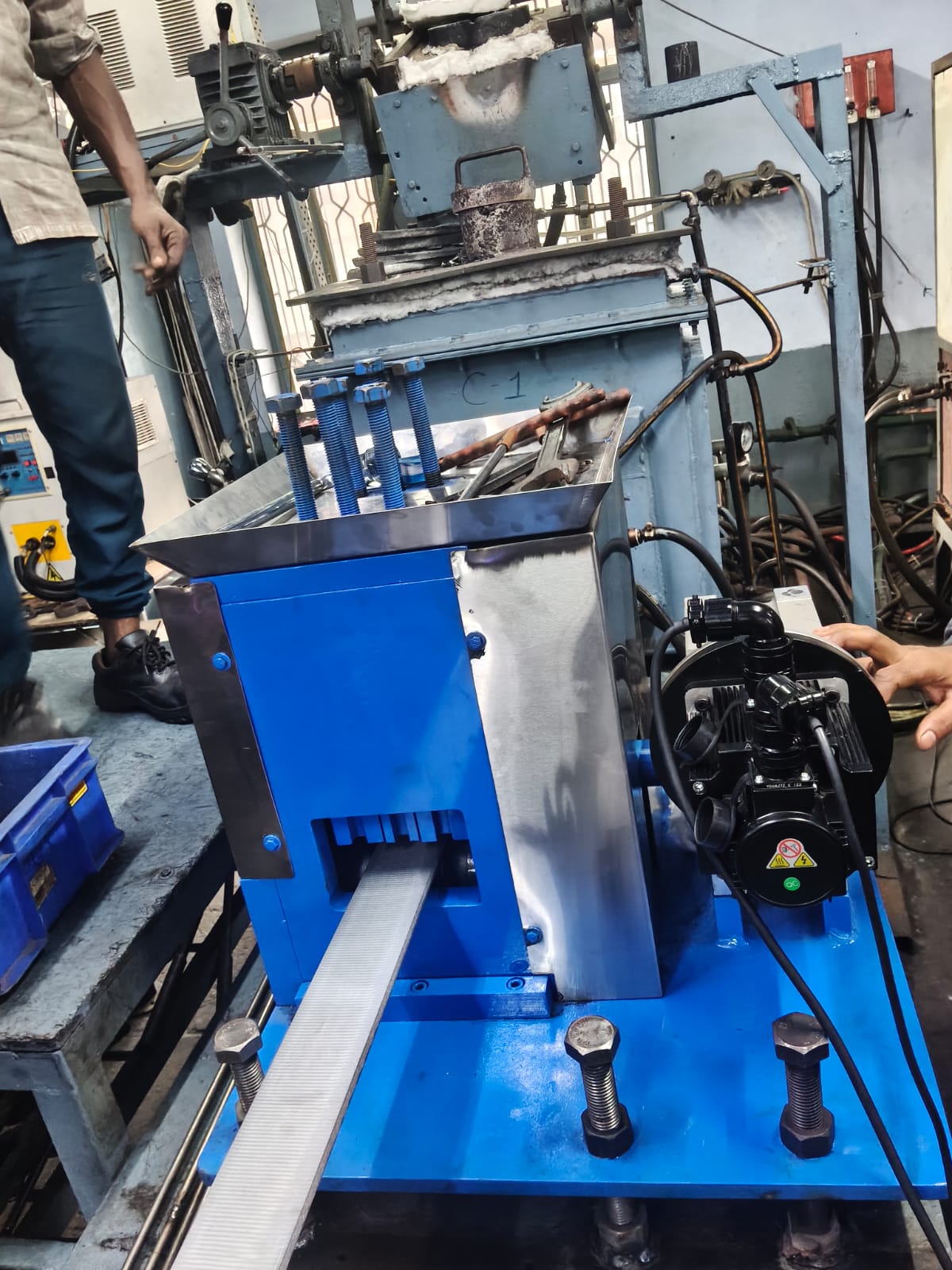

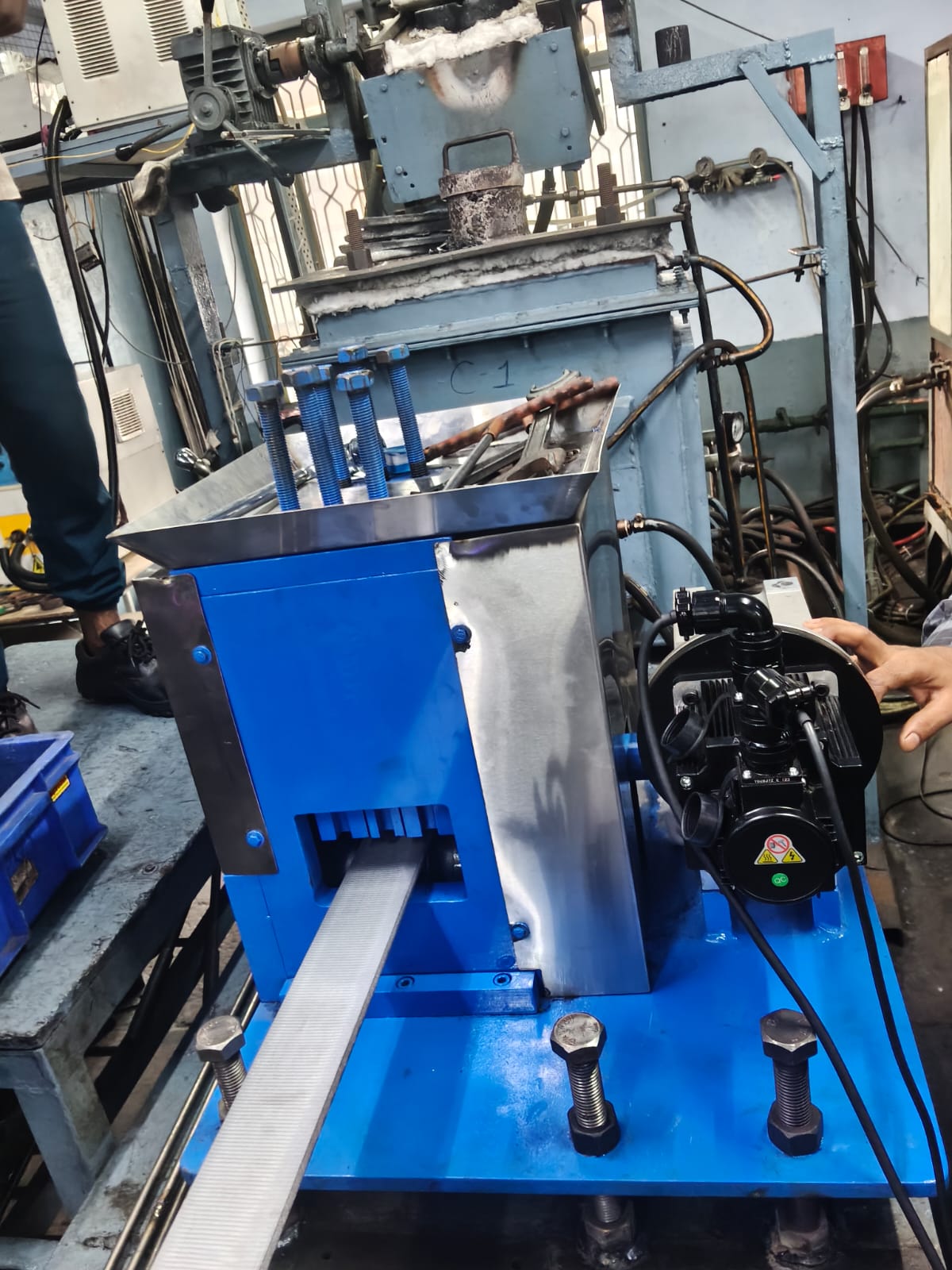

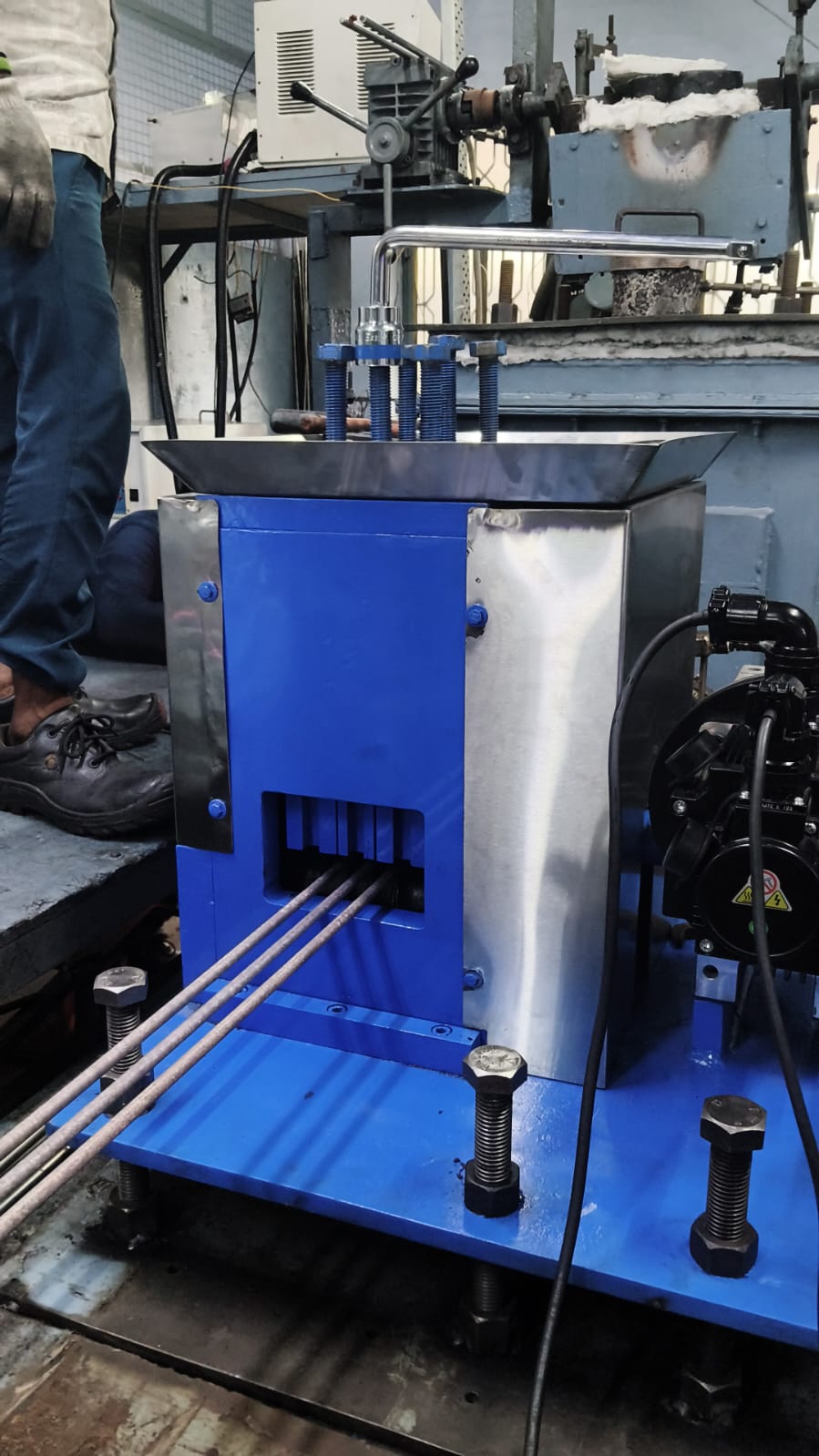

We manufacture Jewelry Casting machine for Gold & Silver Casting in various form shapes like Rod, Strip, Tube & Section for all type of Jewelry alloys such as 10 carat, 12 Carat, 14 Carat, 16 Carat, 18 Carat, 22 Carat & pure Gold 24 Carat.

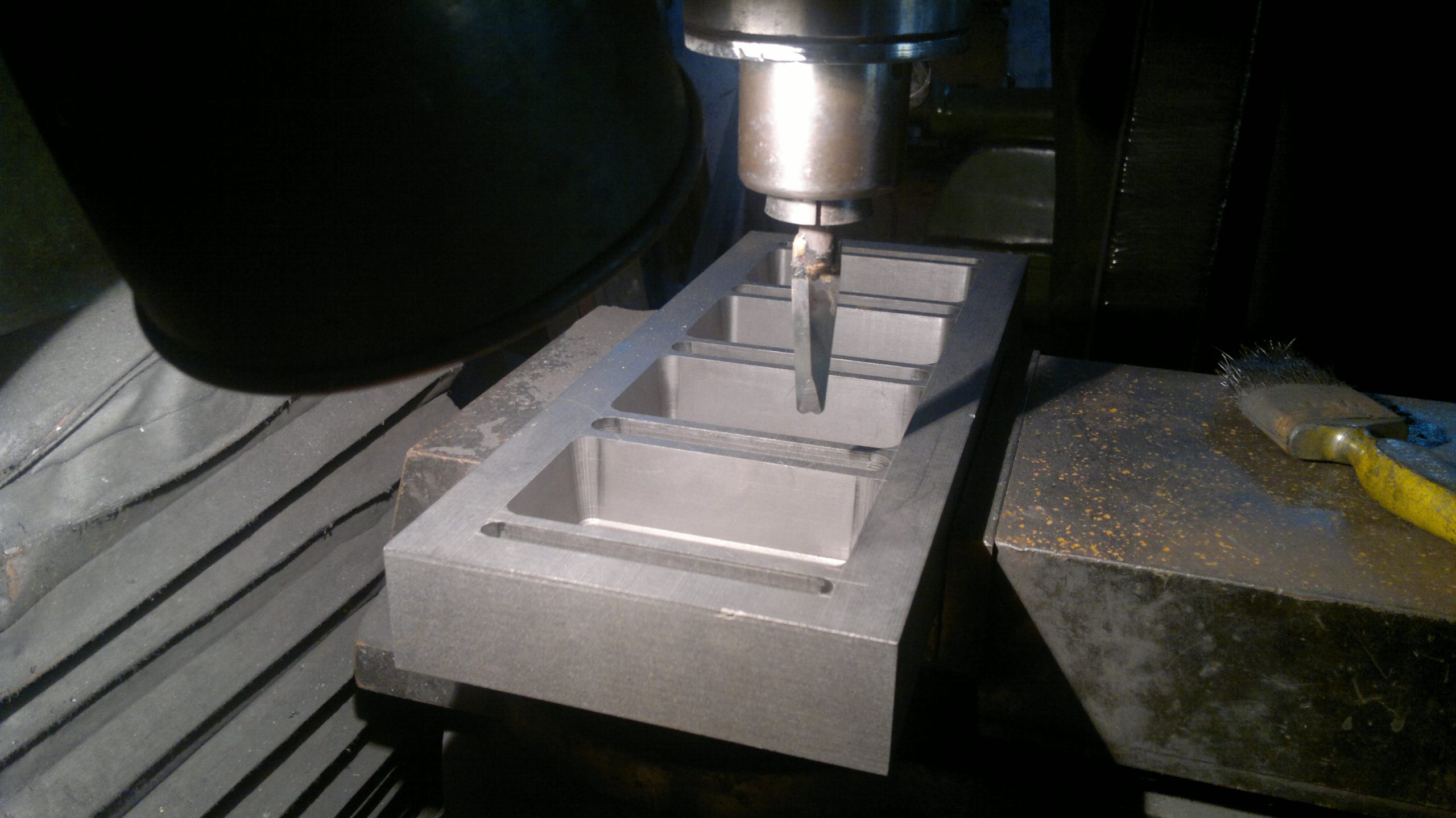

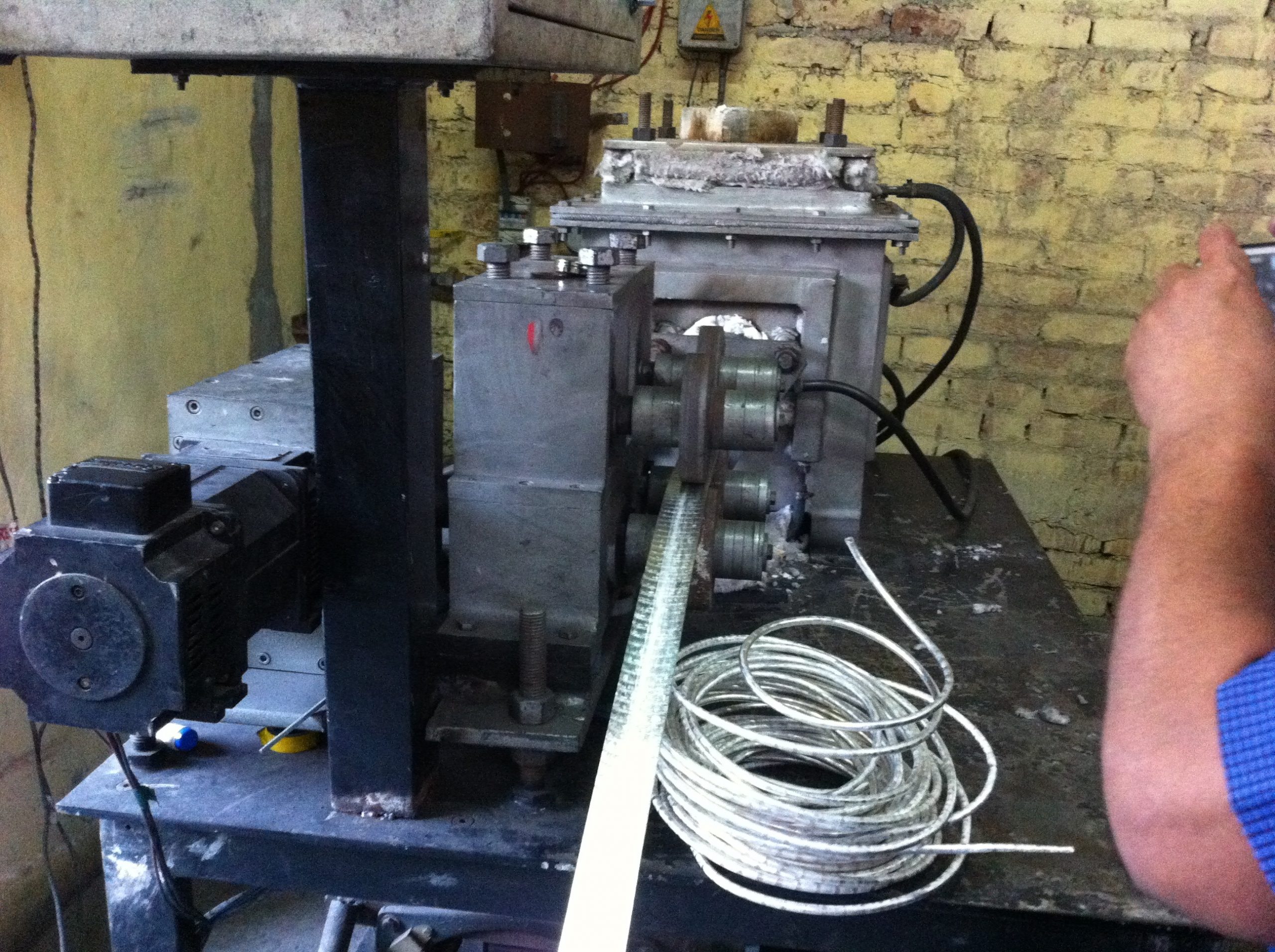

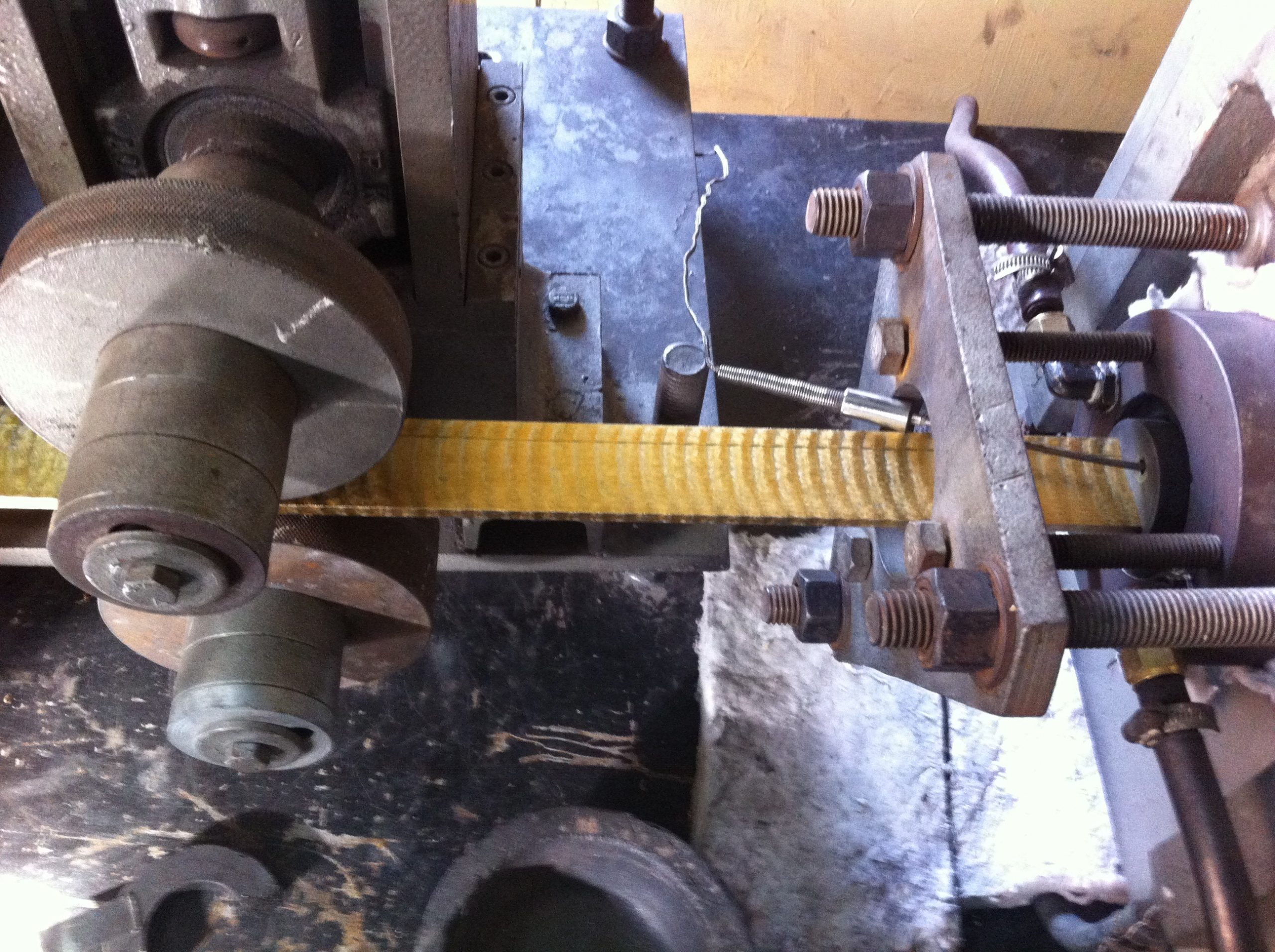

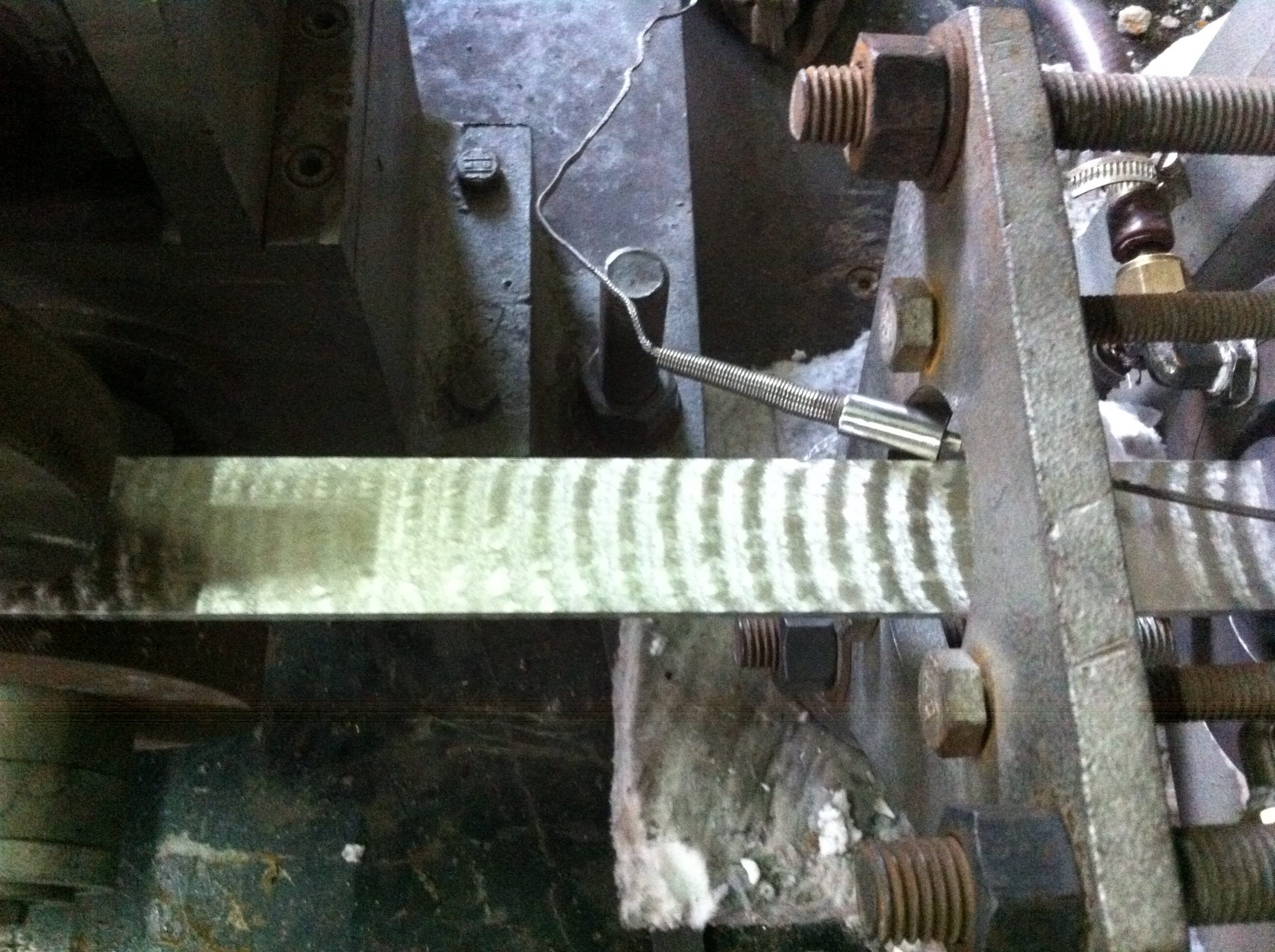

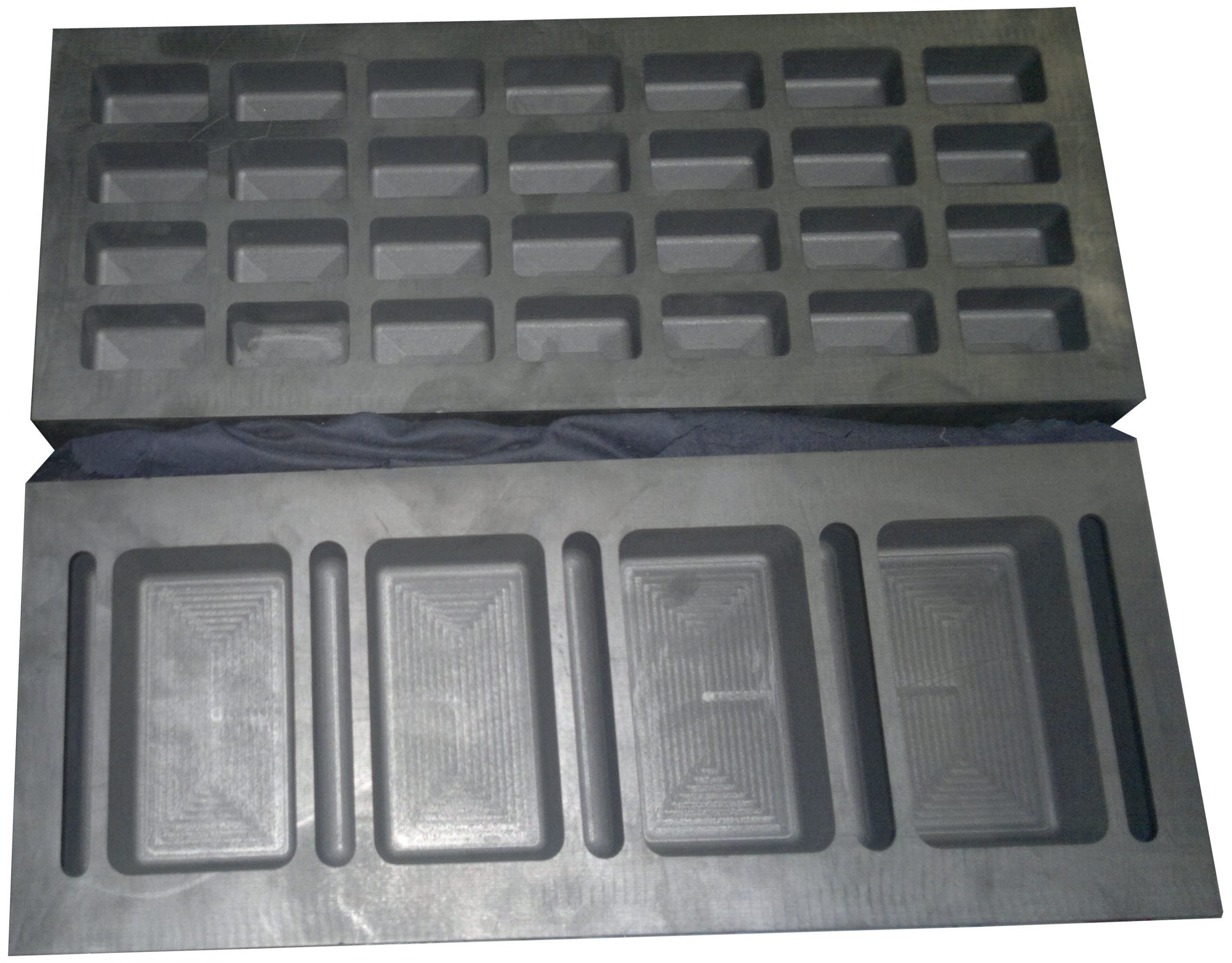

Silver Alloys such as Sterling Silver 92.5% & Balance Copper, 80:20 Silver and some brazing alloy for silver & Gold Brazing alloy is casted through horizontal continuous casting machinery. The high quality of output material depends on high density Graphite crucibles & Graphite die cast to the last drop of material, thus resulting in NO WASTE, and LOSS of Material and full recovery of material output.
|
Machine Range/ Model
|
Power Rating (KVA)
|
Cruc. Capacity
|
Rod Dia. (Min-Max.)
|
Section width max.
|
Max. No. of Dies
|
Max. No. of Strands
|
Casting Capacity Kg./Hr.
|
Max. Temp.
|
Typical Application
|
|
VHC-5
|
10
|
5
|
6-50
|
35
|
1
|
2
|
7
|
1400
|
Rods, Strips
|
|
VHC-10
|
15
|
7
|
6-50
|
35
|
1
|
2
|
10
|
1400
|
Hollow Rods & Strips
|
JEWELRY CASTING MACHINE
